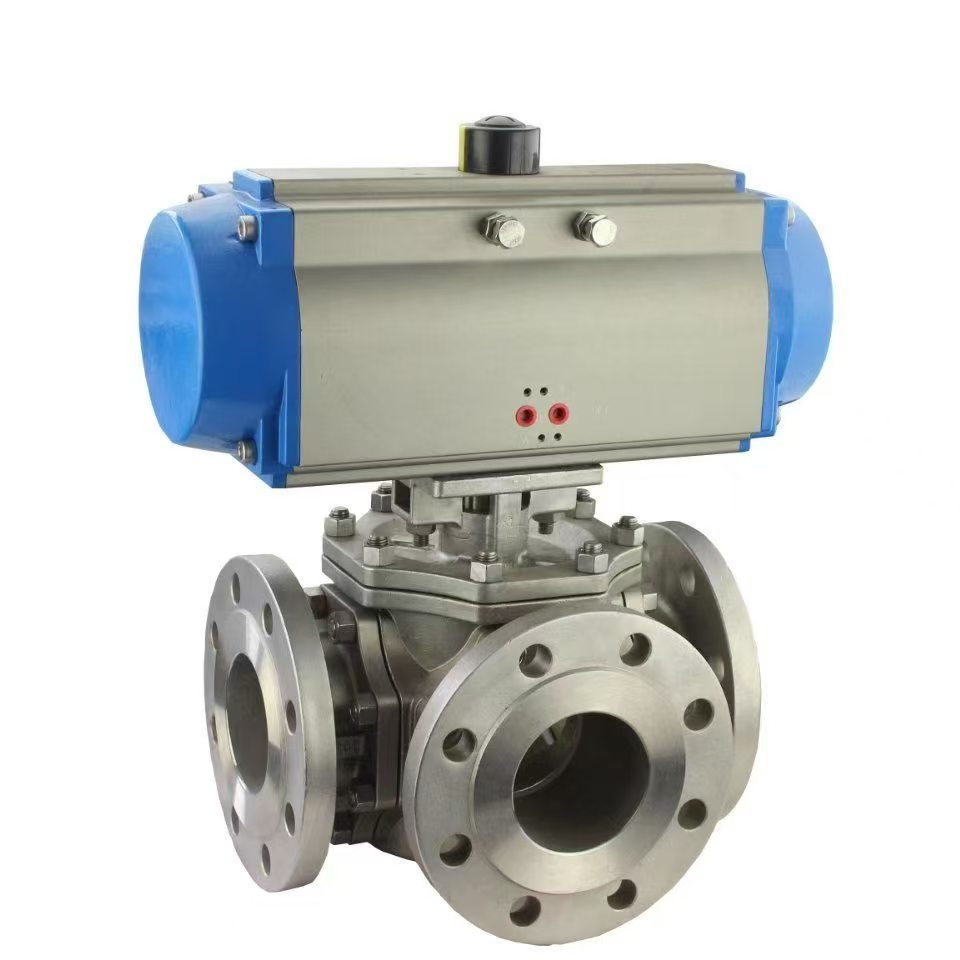

Pneumatic Three-Way Ball Valve
Pneumatic actuator drives a three-way ball to switch between L-port and T-port flow paths, ideal for flow mixing, diverting, and directional control.
Inquire Now →Product Overview
Pneumatic three-way ball valves feature a single ball with three ports, allowing one valve to perform flow switching, mixing, or diverting functions that would normally require multiple two-way valves. Compressed-air actuation provides fast 90° operation and reliable remote control.
Available in two standard ball configurations — L-port and T-port — to match your piping logic.
L-Port vs. T-Port Flow Paths
The diagram below shows the typical flow combinations for L-port and T-port three-way ball valves. L-port provides direction switching between two outlet ports, while T-port enables mixing, diverting, and straight-through flow.
Key Features
- Two Configurations: L-port for flow direction switching; T-port for mixing, diverting, and straight-through service
- Fast Pneumatic Actuation: 90° open/close in under 2 seconds, supports double-acting and spring-return actuators
- Compact Design: Replaces multiple two-way valves and reduces piping complexity
- Reliable Sealing: PTFE / RPTFE / PPL seats provide bubble-tight shutoff
- Wide Compatibility: Handles water, oil, gas, steam, and mildly corrosive media
Technical Specifications
产品概述
气动三通球阀采用带三个端口的单球体结构，一台阀门即可实现流向切换、介质混合或分流功能，通常可替代多台二通球阀。压缩空气驱动实现 90° 快速启闭和可靠的远程控制。
提供两种标准球芯结构：L型 和 T型，可根据管路工艺需求选配。
L型与T型流向说明
下图展示了 L 型三通球阀和 T 型三通球阀的典型流向组合。L 型主要用于两条出口管路之间的流向切换；T 型则可实现介质混合、分流以及直通三种功能。
核心特点
- 两种球芯结构：L 型用于流向切换；T 型可实现混合、分流和直通
- 气动快速启闭：90° 旋转 2 秒内完成，可选双作用或弹簧复位执行器
- 结构紧凑：可替代多台二通阀，简化管路布局
- 密封可靠：PTFE / RPTFE / PPL 阀座，零泄漏密封
- 介质适应广：适用于水、油、气体、蒸汽及弱腐蚀性介质
